TrueForm Example Gallery

Examples are grouped by workflow. Click an image for a larger preview, or click a title to jump to the matching code snippet.

Sketch 2D

2D primitives and profile-building helpers used as inputs for downstream modeling features.

Line

Sketch 2D

Arc

Sketch 2D

Circle

Sketch 2D

Ellipse

Sketch 2D

Rectangle (Center)

Sketch 2D

Rectangle (Corner)

Sketch 2D

Slot

Sketch 2D

Polygon

Sketch 2D

Spline

Sketch 2D

Point

Sketch 2D

Rectangle Array

Sketch 2D

Create

Base shape construction across solids, surfaces, sweeps, and shell/thicken workflows.

Extrude

Create

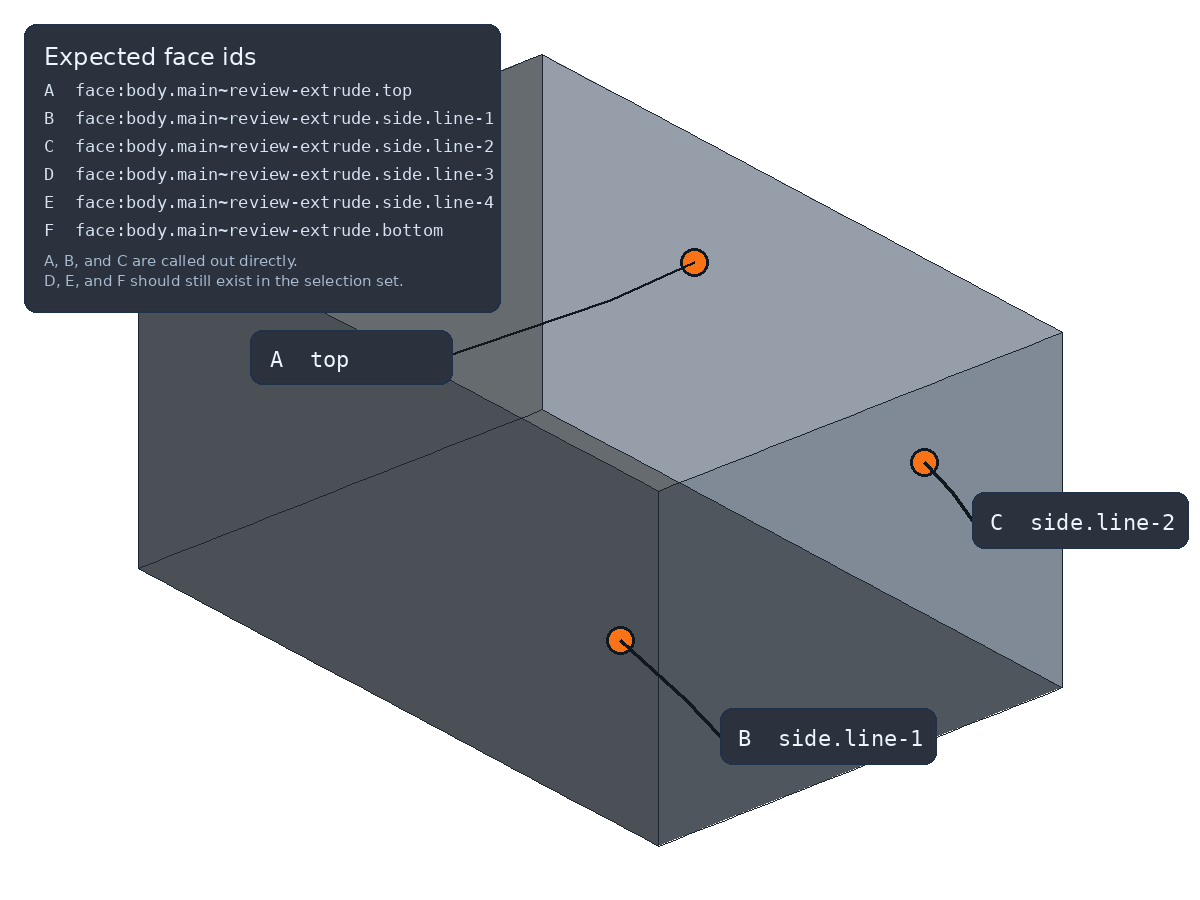

Selection Ledger Extrude Review

Create

Surface

Create

Extrude (Surface)

Create

Revolve

Create

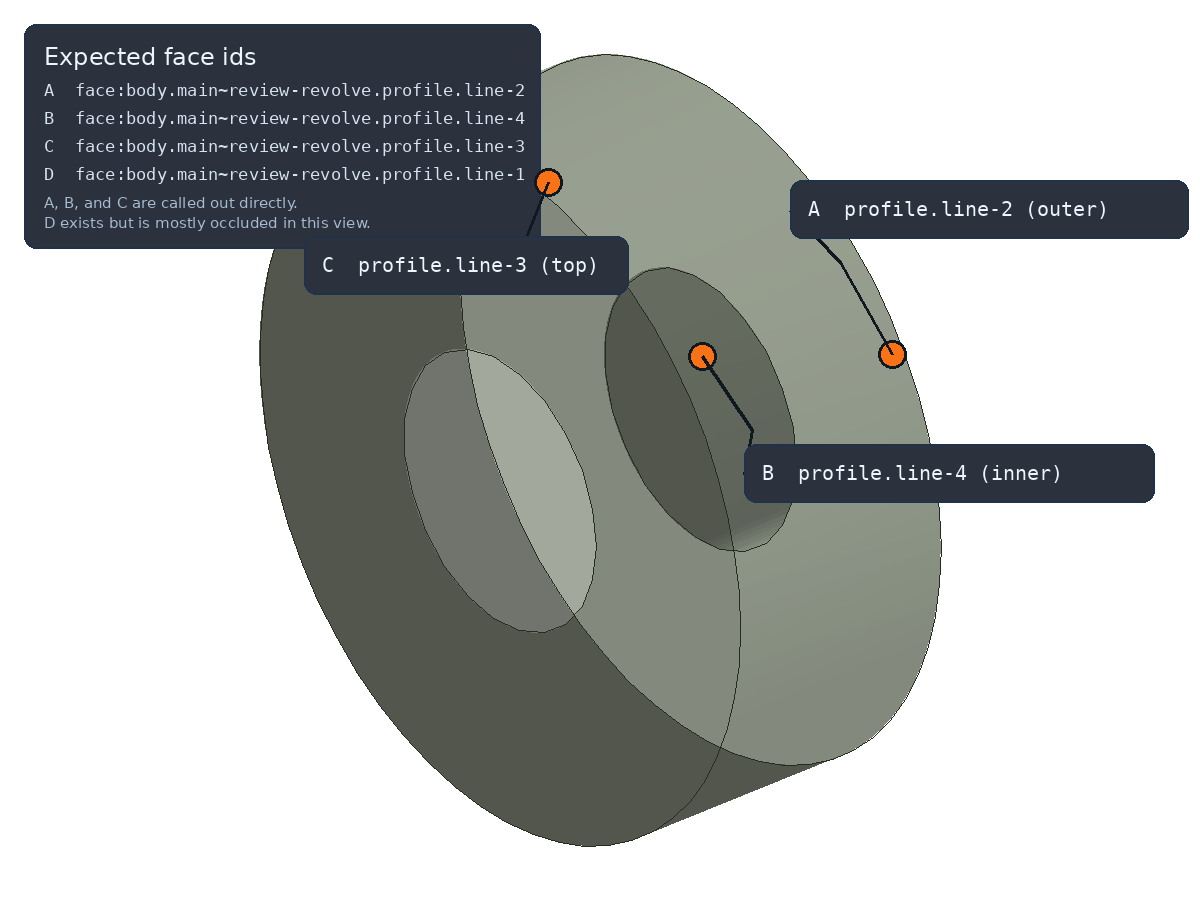

Selection Ledger Revolve Review

Create

Loft

Create

Sweep (Surface)

Create

Pipe

Create

Helix Path

Create

Spiral Path

Create

Sweep (Arbitrary Sketch)

Create

Thicken

Create

Unwrap (Box Net)

Create

Shell

Create

Modify

Feature edits, detailing, and review-oriented examples for changing existing geometry.

Hole

Modify

Hole (Counterbore + Countersink)

Modify

Fillet

Modify

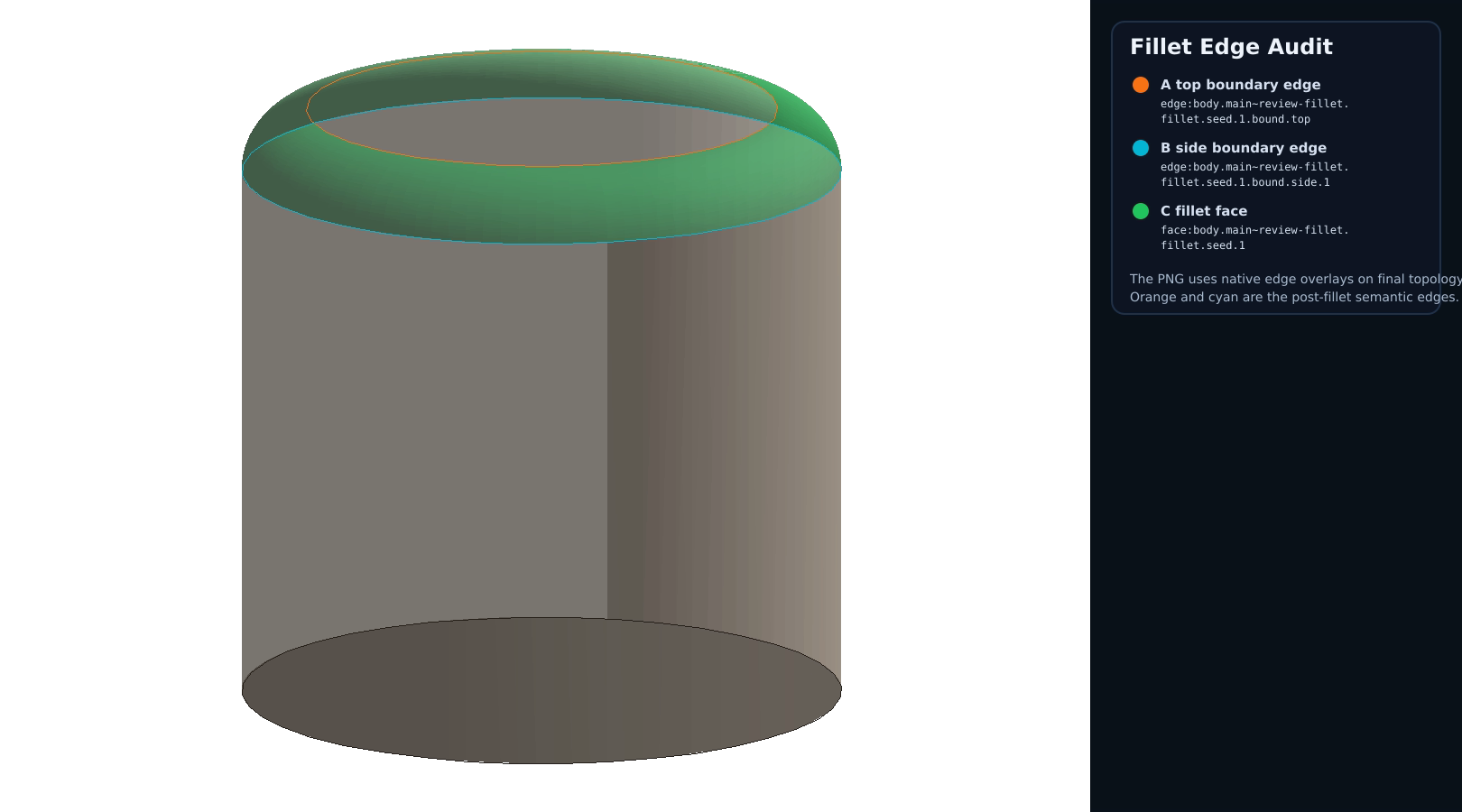

Selection Ledger Fillet Edge Review

Modify

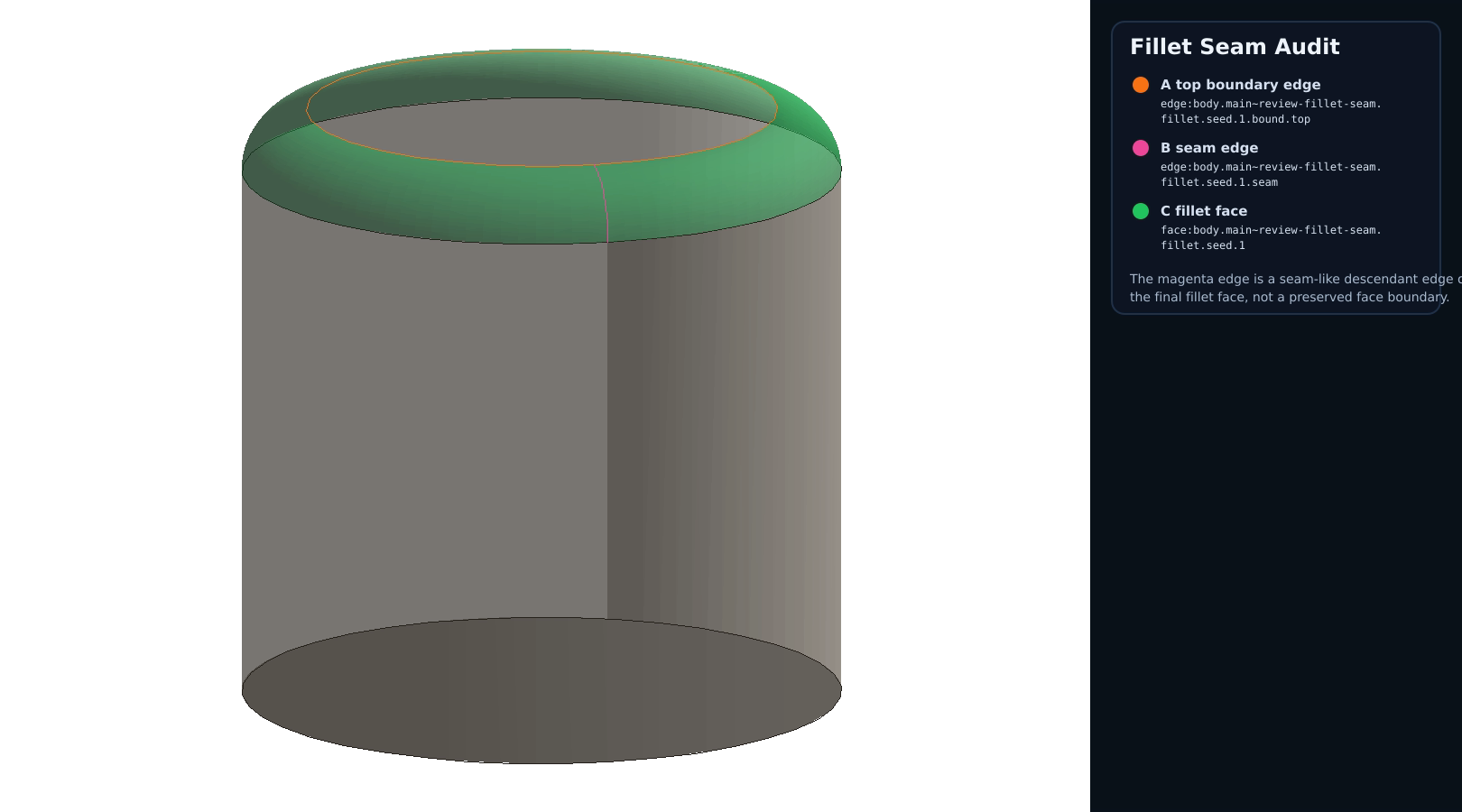

Selection Ledger Fillet Seam Review

Modify

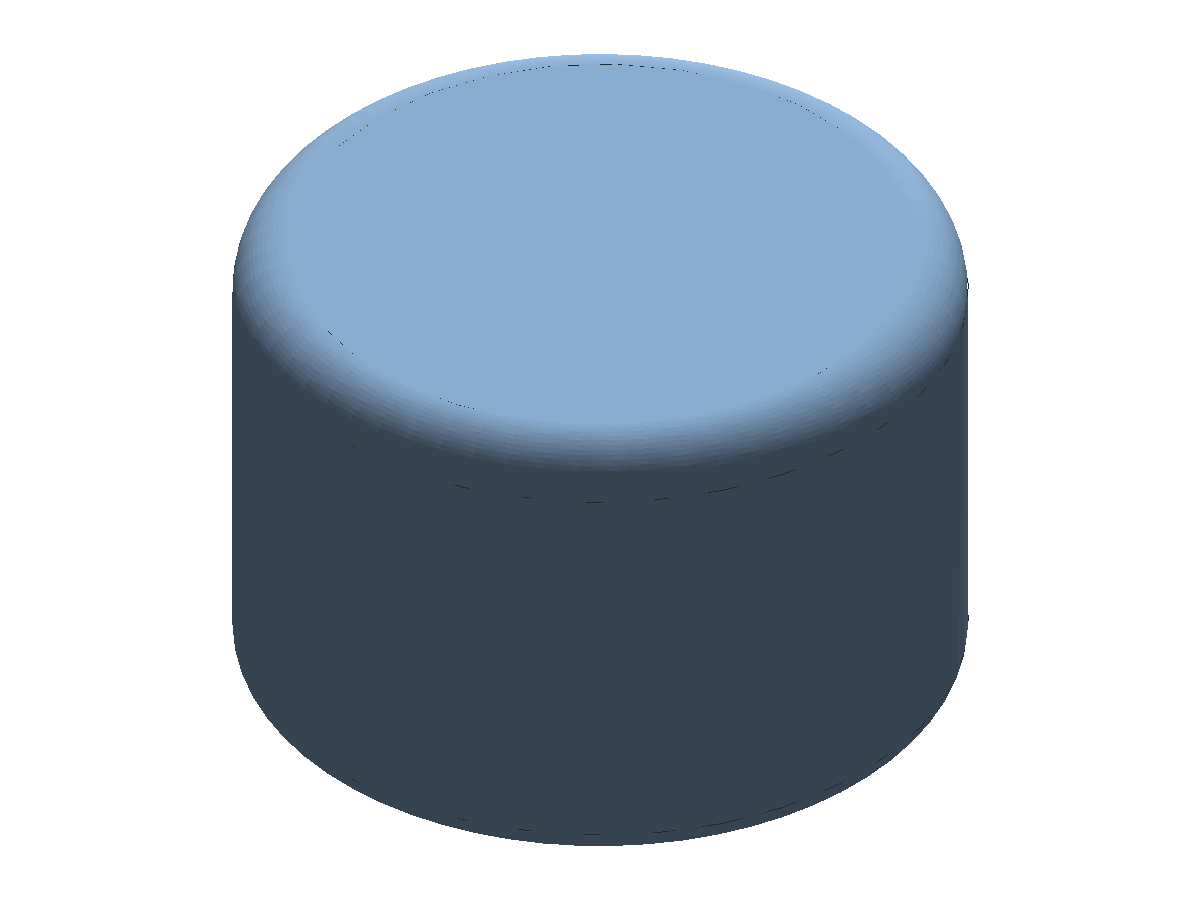

Variable Fillet

Modify

Chamfer

Modify

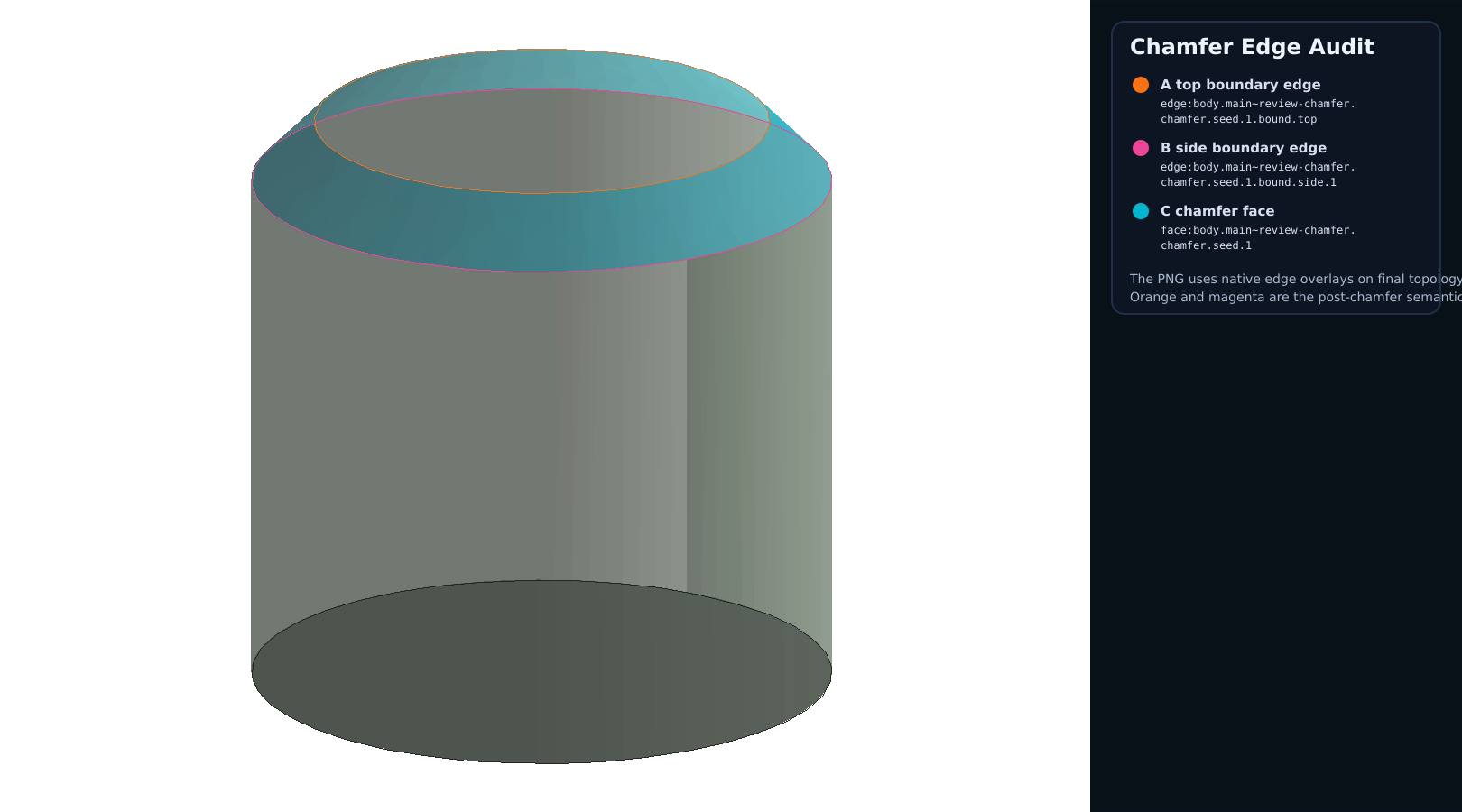

Selection Ledger Chamfer Edge Review

Modify

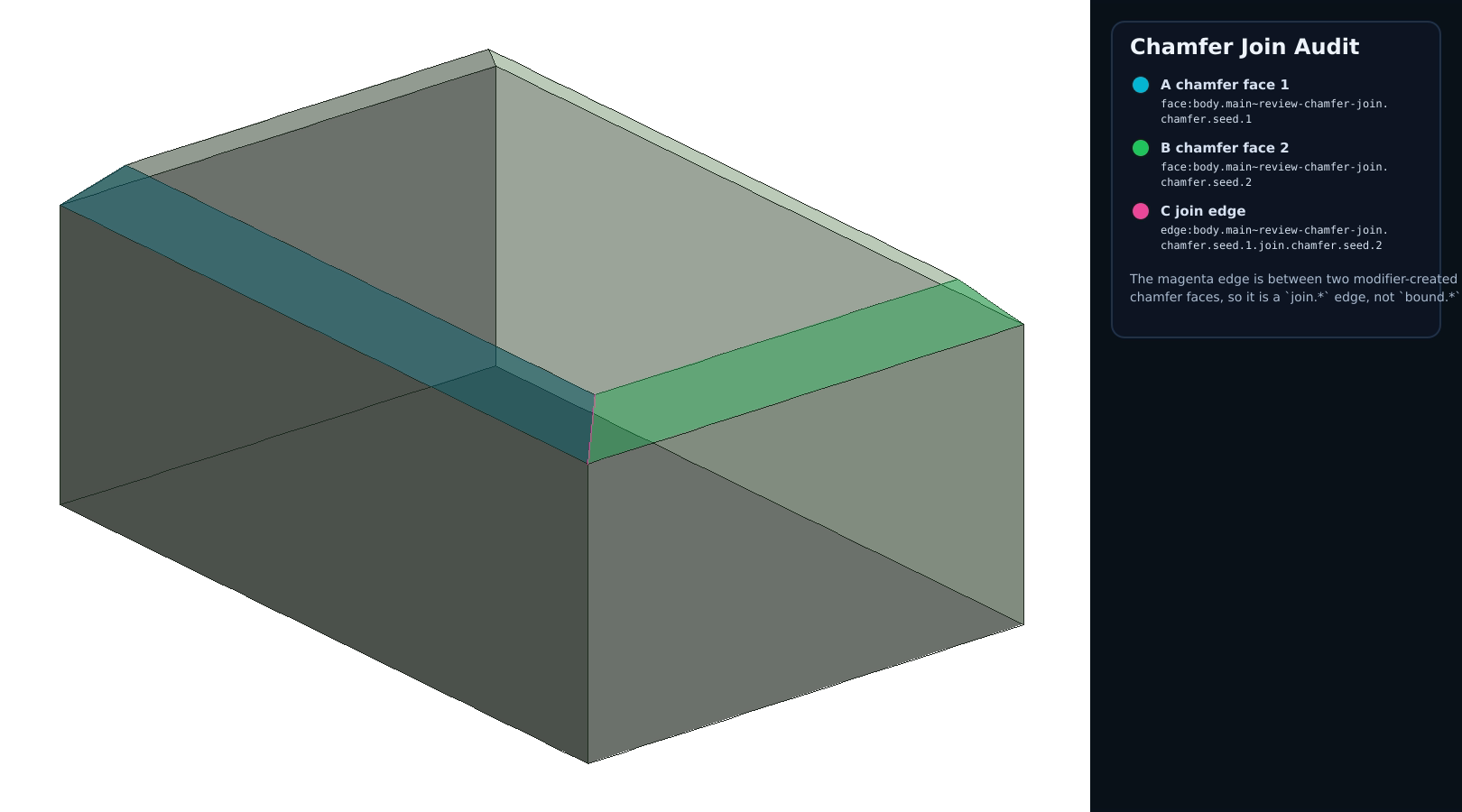

Selection Ledger Chamfer Join Review

Modify

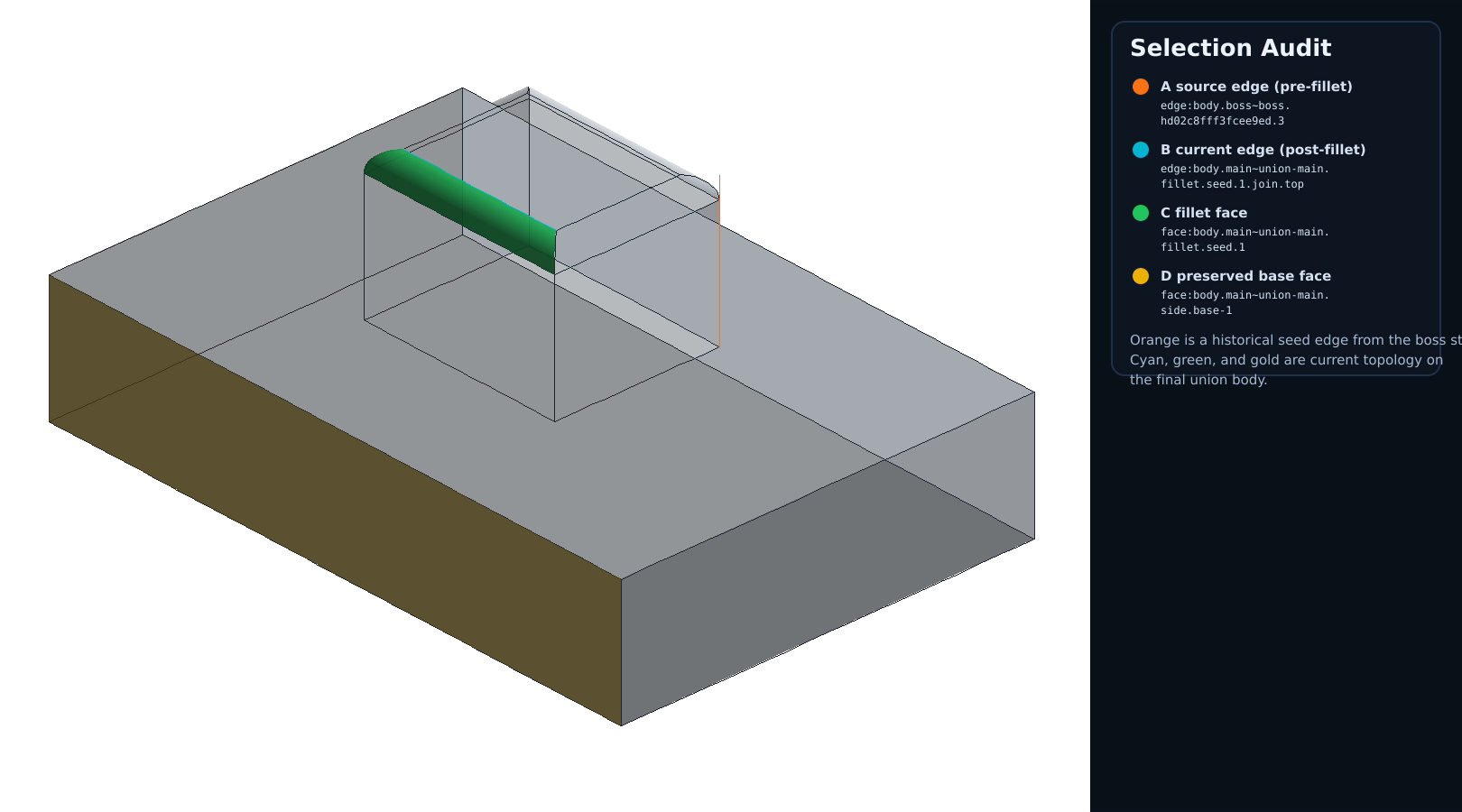

Selection Ledger Multi-Feature Audit

Modify

Variable Chamfer

Modify

Delete Face

Modify

Replace Face

Modify

Move Face

Modify

Draft

Modify

Boolean & Combine

Union, subtract, and intersect examples with source-body ghost overlays for readability.

Boolean Union

Boolean & Combine

Boolean Subtract

Boolean & Combine

Boolean Intersect

Boolean & Combine

Pattern & Transform

Body/feature repetition plus mirror and move operations for arranging geometry.

Pattern (Feature/Body)

Pattern & Transform

Pattern (Circular)

Pattern & Transform

Feature Array

Pattern & Transform

Spline Array

Pattern & Transform

Circular Array

Pattern & Transform

Radial Array

Pattern & Transform

Mirror

Pattern & Transform

Move Body

Pattern & Transform

Inspect & PMI

Curve interrogation, tolerancing, and cosmetic annotation examples.

Curve Intersect (Staging)

Inspect & PMI

Tolerancing (PMI)

Inspect & PMI

Cosmetic Thread

Inspect & PMI

Example Code

const examplePart = part("example-extrude", [
  extrude("base", profileRect(80, 50), 12, "body:main"),
]);

const examplePart = part("example-extrude", [
  extrude("base", profileRect(80, 50), 12, "body:main"),
]);

const rect = sketchRectCorner("rect-1", [0, 0], 40, 20);
const sketch = sketch2d(
  "sketch-face",
  [{ name: "profile:rect", profile: profileSketchLoop(["rect-1"]) }],
  { entities: [rect] }
);

const examplePart = part("example-surface", [
  sketch,
  surface("face-1", profileRef("profile:rect"), "surface:main"),
]);

const spline = sketchSpline("spline-1", [
  [-30, -12],
  [-10, 18],
  [8, -6],
  [30, 16],
]);
const sketch = sketch2d(
  "sketch-extrude-surface",
  [{ name: "profile:open", profile: profileSketchLoop(["spline-1"], { open: true }) }],
  { entities: [spline] }
);

const examplePart = part("example-extrude-surface", [
  sketch,
  extrude("surface-extrude", profileRef("profile:open"), 18, "surface:wall", undefined, {
    mode: "surface",
  }),
]);

const line = sketchLine("line-1", [10, 0], [10, 16]);
const sketch = sketch2d(
  "sketch-curve-intersect",
  [{ name: "profile:wall", profile: profileSketchLoop(["line-1"], { open: true }) }],
  { plane: planeDatum("sketch-plane"), entities: [line] }
);

const examplePart = part("example-curve-intersect", [
  datumPlane("sketch-plane", "+Y"),
  sketch,
  revolve(
    "surface-revolve",
    profileRef("profile:wall"),
    "+Z",
    "full",
    "surface:cylinder",
    { mode: "surface" }
  ),
  datumPlane("cut-plane", axisVector([0, 1, 1]), [0, 0, 8]),
  plane("cut-face", 80, 80, "surface:cut", {
    plane: planeDatum("cut-plane"),
    deps: ["cut-plane"],
  }),
  curveIntersect(
    "curve-intersect-1",
    selectorNamed("surface:cylinder"),
    selectorNamed("surface:cut"),
    "curve:main"
  ),
]);

const examplePart = part("example-revolve", [
  revolve(
    "ring-revolve",
    profileRect(3, 6, [1.5, 3, 0]),
    "+X",
    "full",
    "body:main"
  ),
]);

const examplePart = part("example-revolve", [
  revolve(
    "ring-revolve",
    profileRect(3, 6, [1.5, 3, 0]),
    "+X",
    "full",
    "body:main"
  ),
]);

const examplePart = part("example-loft", [
  loft(
    "loft-1",
    [
      profileCircle(10, [0, 0, 0]),
      profilePoly(6, 16, [0, 0, 24], Math.PI / 6),
    ],
    "body:main"
  ),
]);

const line = sketchLine("line-1", [-8, 0], [8, 0]);
const sketch = sketch2d(
  "sketch-sweep",
  [
    {
      name: "profile:line",
      profile: profileSketchLoop(["line-1"], { open: true }),
    },
  ],
  { entities: [line] }
);
const path = pathPolyline([
  [0, 0, 0],
  [0, 0, 20],
  [15, 0, 30],
]);

const examplePart = part("example-sweep", [
  sketch,
  sweep("sweep-1", profileRef("profile:line"), path, "surface:main", undefined, {
    mode: "surface",
  }),
]);

const examplePart = part("example-pipe", [
  pipe("pipe-1", "+Z", 60, 24, 18, "body:main"),
]);

const examplePart = part("example-path-helix", [
  pipeSweep(
    "helix-pipe",
    pathHelix({
      origin: [0, 0, 0],
      axis: [0, 0, 1],
      radius: 12,
      pitch: 12,
      turns: 1.5,
      segmentsPerTurn: 24,
    }),
    4,
    undefined,
    "body:main"
  ),
]);

const examplePart = part("example-path-spiral", [
  pipeSweep(
    "spiral-pipe",
    pathSpiral({
      origin: [0, 0, 0],
      normal: [0, 0, 1],
      startRadius: 10,
      endRadius: 36,
      turns: 2,
      segmentsPerTurn: 60,
    }),
    4,
    undefined,
    "body:main"
  ),
]);

const l1 = sketchLine("line-1", [-5, -4], [5, -4]);
const l2 = sketchLine("line-2", [5, -4], [0, 6]);
const l3 = sketchLine("line-3", [0, 6], [-5, -4]);
const sketch = sketch2d(
  "sketch-sweep-profile",
  [{ name: "profile:loop", profile: profileSketchLoop(["line-1", "line-2", "line-3"]) }],
  { entities: [l1, l2, l3] }
);
const path = pathSpline(
  [
    [0, 0, 0],
    [0, 0, 20],
    [14, 8, 34],
    [30, 0, 48],
  ],
  { degree: 3 }
);

const examplePart = part("example-sweep-sketch", [
  sketch,
  sweep("sweep-sketch-1", profileRef("profile:loop"), path, "body:main", undefined, {
    orientation: "frenet",
  }),
]);

const examplePart = part("example-hole", [
  extrude("base", profileRect(90, 50), 12, "body:main"),
  hole(
    "hole-1",
    selectorFace([predPlanar()], [rankMaxZ()]),
    "-Z",
    14,
    "throughAll",
    { deps: ["base"] }
  ),
]);

const examplePart = part("example-hole", [
  extrude("base", profileRect(90, 50), 12, "body:main"),
  hole(
    "hole-1",
    selectorFace([predPlanar()], [rankMaxZ()]),
    "-Z",
    14,
    "throughAll",
    { deps: ["base"] }
  ),
]);

const examplePart = part("example-fillet", [
  extrude("cyl", profileCircle(14), 28, "body:main"),
  fillet(
    "edge-fillet",
    selectorEdge([predCreatedBy("cyl")], [rankMaxZ()]),
    3,
    ["cyl"]
  ),
]);

const examplePart = part("example-fillet", [
  extrude("cyl", profileCircle(14), 28, "body:main"),
  fillet(
    "edge-fillet",
    selectorEdge([predCreatedBy("cyl")], [rankMaxZ()]),
    3,
    ["cyl"]
  ),
]);

const examplePart = part("example-fillet", [
  extrude("cyl", profileCircle(14), 28, "body:main"),
  fillet(
    "edge-fillet",
    selectorEdge([predCreatedBy("cyl")], [rankMaxZ()]),
    3,
    ["cyl"]
  ),
]);

const examplePart = part("example-variable-fillet", [
  extrude("base", profileCircle(12), 16, "body:main"),
  variableFillet(
    "fillet-var",
    selectorNamed("body:main"),
    [
      { edge: selectorEdge([predCreatedBy("base")], [rankMaxZ()]), radius: 1.8 },
      { edge: selectorEdge([predCreatedBy("base")], [rankMinZ()]), radius: 0.9 },
    ],
    "body:filleted",
    ["base"]
  ),
]);

const examplePart = part("example-chamfer", [
  extrude("block", profileRect(40, 26), 12, "body:main"),
  chamfer(
    "edge-chamfer",
    selectorEdge([predCreatedBy("block")]),
    2,
    ["block"]
  ),
]);

const examplePart = part("example-chamfer", [
  extrude("block", profileRect(40, 26), 12, "body:main"),
  chamfer(
    "edge-chamfer",
    selectorEdge([predCreatedBy("block")]),
    2,
    ["block"]
  ),
]);

const examplePart = part("example-chamfer", [
  extrude("block", profileRect(40, 26), 12, "body:main"),
  chamfer(
    "edge-chamfer",
    selectorEdge([predCreatedBy("block")]),
    2,
    ["block"]
  ),
]);

const examplePart = part("example-fillet", [
  extrude("cyl", profileCircle(14), 28, "body:main"),
  fillet(
    "edge-fillet",
    selectorEdge([predCreatedBy("cyl")], [rankMaxZ()]),
    3,
    ["cyl"]
  ),
]);

const examplePart = part("example-variable-chamfer", [
  extrude("base", profileCircle(12), 16, "body:main"),
  variableChamfer(
    "chamfer-var",
    selectorNamed("body:main"),
    [
      { edge: selectorEdge([predCreatedBy("base")], [rankMaxZ()]), distance: 1.2 },
      { edge: selectorEdge([predCreatedBy("base")], [rankMinZ()]), distance: 0.6 },
    ],
    "body:chamfered",
    ["base"]
  ),
]);

const examplePart = part("example-boolean", [
  extrude("base", profileCircle(18), 12, "body:base"),
  extrude("tool", profileRect(20, 12, [16, 0, 0]), 12, "body:tool"),
  booleanOp(
    "union-1",
    "union",
    selectorNamed("body:base"),
    selectorNamed("body:tool"),
    "body:main",
    ["base", "tool"]
  ),
]);

const examplePart = part("example-boolean-cut", [
  extrude("base", profileRect(70, 36), 14, "body:base"),
  extrude("tool", profileCircle(10, [10, 0, 0]), 14, "body:tool"),
  cut("subtract-1", selectorNamed("body:base"), selectorNamed("body:tool"), "body:main"),
]);

const examplePart = part("example-boolean-intersect", [
  extrude("a", profileCircle(16), 26, "body:a"),
  extrude("b", profileCircle(16, [12, 0, 0]), 26, "body:b"),
  intersect("intersect-1", selectorNamed("body:a"), selectorNamed("body:b"), "body:main"),
]);

const examplePart = part("example-pattern", [
  extrude("seed", profileRect(10, 10), 8, "body:seed"),
  patternLinear(
    "pattern-1",
    selectorFace([predCreatedBy("seed"), predPlanar(), predNormal("+Z")], [rankMaxZ()]),
    [18, 0],
    [4, 1],
    {
      source: selectorNamed("body:seed"),
      result: "body:main",
      deps: ["seed"],
    }
  ),
]);

const examplePart = part("example-pattern-circular", [
  extrude("center", profileCircle(8), 8, "body:center"),
  extrude("seed", profileRect(18, 6, [13, 0, 0]), 8, "body:seed"),
  patternCircular(
    "pattern-circular-1",
    selectorFace([predCreatedBy("center"), predPlanar(), predNormal("+Z")], [rankMaxZ()]),
    "+Z",
    6,
    {
      source: selectorNamed("body:seed"),
      result: "body:pattern",
      deps: ["center", "seed"],
    }
  ),
  booleanOp(
    "pattern-circular-union",
    "union",
    selectorNamed("body:center"),
    selectorNamed("body:pattern"),
    "body:main"
  ),
]);

const baseThickness = 6;
const bossHeight = 8;
const bossSize = 16;

const base = extrude(
  "base",
  profileRect(120, 80, [0, 0, 0]),
  baseThickness,
  "body:base"
);

const cubes = featureArray(
  { count: [3, 2], spacing: [36, 36], origin: [-36, -18, baseThickness] },
  ({ index, offset }) =>
    extrude(
      `cube-${index}`,
      profileRect(bossSize, bossSize, offset),
      bossHeight,
      `body:cube-${index}`
    )
);

const unions = [];
let current = "body:base";
for (let i = 0; i < cubes.length; i++) {
  const result = i === cubes.length - 1 ? "body:main" : `body:union-${i}`;
  unions.push(
    booleanOp(
      `union-${i}`,
      "union",
      selectorNamed(current),
      selectorNamed(`body:cube-${i}`),
      result
    )
  );
  current = result;
}

const examplePart = part("example-feature-array", [base, ...cubes, ...unions]);

import { dsl, buildPart } from "trueform";
import { exportStepAp242WithPmi } from "trueform/export";

const topFace = dsl.selectorFace(
  [dsl.predPlanar(), dsl.predNormal("+Z")],
  [dsl.rankMaxZ()]
);
const bottomFace = dsl.selectorFace(
  [dsl.predPlanar(), dsl.predNormal("-Z")],
  [dsl.rankMinZ()]
);

const sideFace = dsl.selectorFace([dsl.predPlanar(), dsl.predNormal("+X")]);

const base = dsl.extrude(
  "base",
  dsl.profileRect(120, 70),
  12,
  "body:main"
);
const hole = dsl.hole("hole-1", topFace, "-Z", 10, "throughAll", {
  deps: ["base"],
});
const holeFace = dsl.selectorFace(
  [dsl.predCreatedBy("hole-1")],
  [dsl.rankMaxArea()]
);

const part = dsl.part("example-tolerancing", [base, hole], {
  datums: [
    dsl.datumFeature("datum-A", "A", dsl.refSurface(bottomFace)),
    dsl.datumFeature("datum-B", "B", dsl.refSurface(sideFace)),
  ],
  constraints: [
    dsl.flatnessConstraint("flat-top", dsl.refSurface(topFace), 0.05, {
      requirement: "req-flat-top",
    }),
    dsl.parallelismConstraint(
      "parallel-top",
      dsl.refSurface(topFace),
      0.08,
      [dsl.datumRef("datum-A")]
    ),
    dsl.perpendicularityConstraint(
      "perp-side",
      dsl.refSurface(sideFace),
      0.1,
      [dsl.datumRef("datum-A")]
    ),
    dsl.positionConstraint(
      "pos-hole",
      dsl.refAxis(holeFace),
      0.2,
      [dsl.datumRef("datum-A"), dsl.datumRef("datum-B")],
      { zone: "diameter", modifiers: ["MMC"] }
    ),
    dsl.sizeConstraint("size-hole", dsl.refAxis(holeFace), {
      nominal: 10,
      tolerance: 0.1,
      modifiers: ["MMC"],
    }),
    dsl.surfaceProfileConstraint("profile-top", dsl.refSurface(topFace), 0.03, {
      referenceFrame: dsl.refFrame(topFace),
      requirement: "req-profile-top",
      capabilities: ["mill-3axis"],
    }),
  ],
});

// After building with a backend:
// const { step, pmi } = exportStepAp242WithPmi(backend, body, part, { schema: "AP242" });

const baseThickness = 6;
const bossHeight = 8;
const bossSize = 12;

const base = extrude(
  "base",
  profileRect(160, 90, [0, 0, 0]),
  baseThickness,
  "body:base"
);

const bosses = featureArrayAlongSpline(
  {
    points: [
      [-60, -20, baseThickness],
      [-30, 25, baseThickness],
      [20, -10, baseThickness],
      [60, 30, baseThickness],
    ],
    count: 7,
    mode: "spline",
  },
  ({ index, offset }) =>
    extrude(
      `boss-${index}`,
      profileRect(bossSize, bossSize, offset),
      bossHeight,
      `body:boss-${index}`
    )
);

const unions = [];
let current = "body:base";
for (let i = 0; i < bosses.length; i++) {
  const result = i === bosses.length - 1 ? "body:main" : `body:union-${i}`;
  unions.push(
    booleanOp(
      `union-${i}`,
      "union",
      selectorNamed(current),
      selectorNamed(`body:boss-${i}`),
      result
    )
  );
  current = result;
}

const examplePart = part("example-spline-array", [base, ...bosses, ...unions]);

const baseThickness = 6;
const bossHeight = 8;
const bossRadius = 6;

const base = extrude(
  "base",
  profileRect(140, 100, [0, 0, 0]),
  baseThickness,
  "body:base"
);

const bosses = featureCircularArray(
  { count: 8, radius: 36, center: [0, 0, baseThickness], units: "deg" },
  ({ index, offset }) =>
    extrude(
      `boss-${index}`,
      profileCircle(bossRadius, offset),
      bossHeight,
      `body:boss-${index}`
    )
);

const unions = [];
let current = "body:base";
for (let i = 0; i < bosses.length; i++) {
  const result = i === bosses.length - 1 ? "body:main" : `body:union-${i}`;
  unions.push(
    booleanOp(
      `union-${i}`,
      "union",
      selectorNamed(current),
      selectorNamed(`body:boss-${i}`),
      result
    )
  );
  current = result;
}

const examplePart = part("example-circular-array", [base, ...bosses, ...unions]);

const baseThickness = 6;
const bossHeight = 8;
const bossSize = 10;

const base = extrude(
  "base",
  profileRect(160, 110, [0, 0, 0]),
  baseThickness,
  "body:base"
);

const bosses = featureRadialArray(
  {
    count: [6, 3],
    radiusStep: 18,
    radiusStart: 18,
    center: [0, 0, baseThickness],
    angleStep: 60,
    units: "deg",
  },
  ({ index, offset }) =>
    extrude(
      `boss-${index}`,
      profileRect(bossSize, bossSize, offset),
      bossHeight,
      `body:boss-${index}`
    )
);

const unions = [];
let current = "body:base";
for (let i = 0; i < bosses.length; i++) {
  const result = i === bosses.length - 1 ? "body:main" : `body:union-${i}`;
  unions.push(
    booleanOp(
      `union-${i}`,
      "union",
      selectorNamed(current),
      selectorNamed(`body:boss-${i}`),
      result
    )
  );
  current = result;
}

const examplePart = part("example-radial-array", [base, ...bosses, ...unions]);

const examplePart = part("example-mirror", [
  datumPlane("mirror-plane", "+X"),
  plane("mirror-plane-surface", 80, 52, "surface:mirror-plane", {
    plane: planeDatum("mirror-plane"),
  }),
  extrude("rib", profileRect(44, 12, [20, 0, 0]), 8, "body:rib"),
  extrude("boss", profileCircle(10, [34, 12, 0]), 16, "body:boss"),
  booleanOp(
    "half-union",
    "union",
    selectorNamed("body:rib"),
    selectorNamed("body:boss"),
    "body:half"
  ),
  mirror(
    "mirror-1",
    selectorNamed("body:half"),
    planeDatum("mirror-plane"),
    "body:mirror"
  ),
  booleanOp(
    "union-2",
    "union",
    selectorNamed("body:half"),
    selectorNamed("body:mirror"),
    "body:main"
  ),
]);

const examplePart = part("example-move-body", [
  extrude("base", profileRect(44, 20), 10, "body:base"),
  moveBody(
    "move-1",
    selectorNamed("body:base"),
    "body:moved",
    ["base"],
    {
      translation: [26, 0, 0],
      rotationAxis: "+Z",
      rotationAngle: Math.PI / 18,
      scale: 0.95,
      origin: [0, 0, 0],
    }
  ),
  booleanOp(
    "union-1",
    "union",
    selectorNamed("body:base"),
    selectorNamed("body:moved"),
    "body:main"
  ),
]);

const examplePart = part("example-delete-face", [
  extrude("base", profileRect(56, 32), 18, "body:base"),
  deleteFace(
    "delete-top",
    selectorNamed("body:base"),
    selectorFace([predCreatedBy("base"), predPlanar()], [rankMaxZ()]),
    "surface:main",
    ["base"],
    { heal: false }
  ),
]);

const examplePart = part("example-replace-face", [
  extrude("base", profileRect(56, 32), 18, "body:base"),
  plane("replace-tool", 56, 32, "surface:tool", {
    origin: [0, 0, 18],
    deps: ["base"],
  }),
  replaceFace(
    "replace-top",
    selectorNamed("body:base"),
    selectorFace([predCreatedBy("base"), predPlanar()], [rankMaxZ()]),
    selectorNamed("surface:tool"),
    "body:main",
    ["base", "replace-tool"],
    { heal: true }
  ),
]);

const examplePart = part("example-move-face", [
  extrude("base", profileRect(56, 32), 18, "body:base"),
  moveFace(
    "move-top",
    selectorNamed("body:base"),
    selectorFace([predCreatedBy("base"), predPlanar()], [rankMaxZ()]),
    "surface:main",
    ["base"],
    {
      translation: [0, 0, 2],
      heal: false,
    }
  ),
]);

const examplePart = part("example-draft", [
  extrude("base", profileRect(60, 40), 20, "body:base"),
  datumPlane("draft-neutral", "+Z"),
  draft(
    "draft-1",
    selectorNamed("body:base"),
    selectorFace([
      predCreatedBy("base"),
      predPlanar(),
      predNormal("+X"),
    ]),
    planeDatum("draft-neutral"),
    "+Z",
    Math.PI / 60,
    "body:main"
  ),
]);

const line = sketchLine("line-1", [10, 0], [10, 16]);
const sketch = sketch2d(
  "sketch-thicken",
  [{ name: "profile:open", profile: profileSketchLoop(["line-1"], { open: true }) }],
  { plane: planeDatum("sketch-plane"), entities: [line] }
);

const examplePart = part("example-thicken", [
  datumPlane("sketch-plane", "+Y"),
  sketch,
  revolve(
    "surface-revolve",
    profileRef("profile:open"),
    "+Z",
    "full",
    "surface:main",
    { mode: "surface" }
  ),
  thicken("thicken-1", selectorNamed("surface:main"), 4, "body:main"),
]);

const examplePart = part("example-unwrap-box", [
  extrude("base", profileRect(48, 32), 20, "body:main"),
  unwrap("unwrap-1", selectorNamed("body:main"), "surface:flat"),
]);

const topFace = selectorFace(
  [predCreatedBy("base"), predPlanar(), predNormal("+Z")],
  [rankMaxArea()]
);

const examplePart = part("example-shell", [
  extrude("base", profileRect(60, 40), 20, "body:base"),
  shell("shell-1", selectorNamed("body:base"), 2, "body:main", undefined, {
    direction: "inside",
    openFaces: [topFace],
  }),
]);

const target = refSurface(selectorFace([predCreatedBy("base")], [rankMaxArea()]));

const examplePart = part("example-thread-cosmetic", [
  extrude("base", profileCircle(10), 24, "body:main"),
], {
  cosmeticThreads: [
    cosmeticThread("thread-1", target, {
      designation: "M8x1.25-6H",
      internal: true,
      length: 12,
    }),
  ],
});

sketchLine("line-1", [-40, -20], [40, 20]);

sketchArc("arc-1", [30, 0], [0, 30], [0, 0], "ccw");

sketchCircle("circle-1", [0, 0], 22);

sketchEllipse("ellipse-1", [0, 0], 26, 12, { rotation: exprLiteral(20, "deg") });

sketchRectCenter("rect-center", [0, 0], 60, 32, { rotation: exprLiteral(10, "deg") });

sketchRectCorner("rect-corner", [-25, -12], 60, 30, { rotation: exprLiteral(-8, "deg") });

sketchSlot("slot-1", [0, 0], 70, 16, { rotation: exprLiteral(12, "deg") });

sketchPolygon("poly-1", [0, 0], 24, 6);

sketchSpline("spline-1", [
  [-30, -10],
  [-10, 20],
  [10, 10],
  [30, -15],
]);

sketchPoint("point-1", [0, 0]);

sketchArray(
  { count: [3, 2], spacing: [28, 18], origin: [-28, -9] },
  ({ index, offset }) => sketchRectCenter(`rect-${index}`, offset, 18, 10)
);
